您現在所在位置:首頁 > 產品中心 > 臺灣moujen茂仁

查看更多

臺灣moujen茂仁

發布日期:2015-10-19瀏覽次數:4429






小型橫式限制開關  (Made in Taiwan)
功能 :
 可配合各種不同之連桿及頭
 具多種使用特性曲線
 接線頭具帽式覆蓋螺絲
 可調式
 內裝接地螺絲
 防塵、防油、防水
 適用溫度 +5 至 +160 . (-15 to +70) .

額定電壓 :

5A 250V AC
0.4A 115 V DC

電氣迴路 :


FIELD ADJUSTABLE :
  Rotary motion roller lever and rod actuators are adjustable
through 360°. They may be set for operation clockwise, counter-clockwise, or in both directions. Operating heads may be positioned in any of four 90° positions.

EASY WIRING :
1. Loosen cover screws and remove cover.
2. Remove rubber strain relief from switch cover.
3. Slip strain relief over cable.
4. Fasten terminal screws and grounding screw tightly after inserting cables or terminals.
5. After wiring insert strain refief into the groove of the switch cover.
6. Fasten 3 cover screws evenly. Do not over tighten.
7. Recommended Cable-# 18/3 SJT Flexible.









防油限制開關  (Made in Taiwan)

功能 :
 可配合各種不同之連桿及頭
 具多種使用特性曲線
 接線頭具帽式覆蓋螺絲
 防塵、防油、防水
 不鏽鋼主零件
 規格及尺寸標準化 1/2” conduit entry.
 適用溫度 +15°F  to +175°F  (-10℃ to  +80℃)

所有密封式限制開關都是雙迴路限制開關,1NO(常開)與1NC(常閉 )迴路,各迴路接點俱為兩段式絕緣。

額定電壓 :

10A

125 or 300V AC(resistive)

0.8A

125 VDC(resistive)

0.4A

250V DC

1/2HP

125 V AC

1HP

250 V AC


電氣迴路 :


特性 :

Operating speed

1mm to 2m/sec

Operating frequency

Mechanically: 120 operations/min.
Electrically: 30 operations/min.

Contact resistance

15m  max.(initial)

Insulation resistance

100M  min.(at 500 VDC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
2,200 VAC, 50/60 Hz for 1 minute between each terminal and non-current-Carrying metal part and between each terminal ground.

Vibration

Malfunction durability:10 to 55Hz 1.5mm double amplitude

Shock

Mechanical durability:
Approx.1,000m/sec2 (approx. 100G s)
Malfunction durability:Approx.300m/sec2(approx.30 G s)

Ambient operating temperature

Operating:-10 to +80

Humidity

95% RH max

Service life

Mechanically:
15,000,000 operations min
Electrically:(2.5A, 110VAC)MAX
500,000 operations min.

Degree of protection

IEC 529 class IP65
(Sealed accessories requirement)













密封式限制開關  (Made in Taiwan)
功能
 小型設計種類齊全與強制脫離安全開關可供選擇
 防油、防水程度佳,符合IP67
 標準品附2m或3m電纜線(VCTF或 SJTO電纜)
 SJTO電纜線為UL認證之耐油纜線
 標準型、側出線型、快速連結型


標準型
  ORDERING CODE :

  電纜規格、長度


VCTF Cable (0.75mm2 x 4c)
SJTO Cable (UL approved) (18AWG x 4c)

  ELECTRICAL RATING
  5A 125 or 250 V AC
  3A 30 V DC
  0.4A 125 V DC

  CIRCUITRY

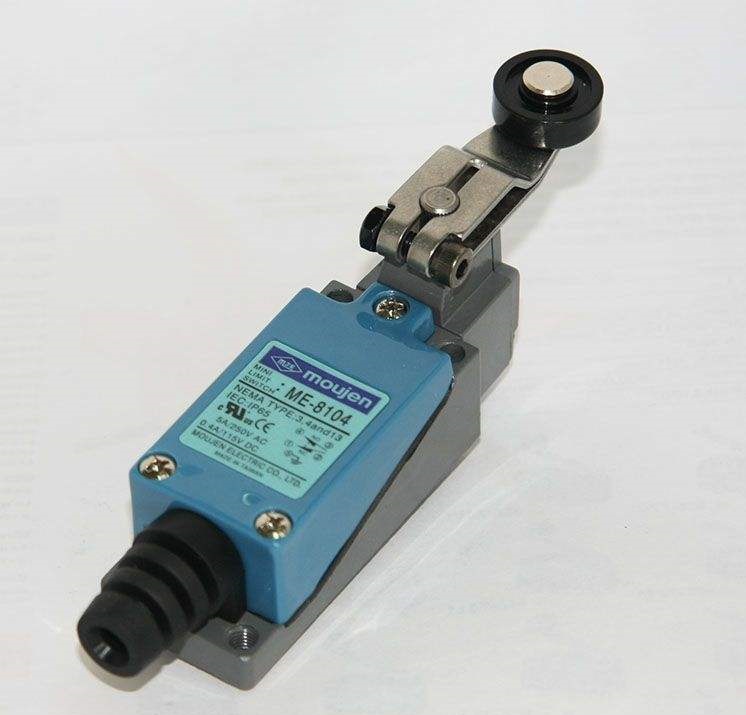

茂仁行程開關ME小型限制開關:
ME-8108,ME-8108-M,ME-8104,ME-8104-M,ME-8107,ME-8111,ME-8104-L,ME-8108-L,ME-8122-P,ME-8112,ME-8112-P,ME-8122,ME-8169,ME-8166,ME-9011,ME-9101-HI,ME-8000
M6照光式按鈕開關系列/蜂鳴器: M-261,M-262,M-271,M-272,M-270,M-232,M-231,M-030,M-218D,M-218E,M-218A,M-218B,M-218C,M-217A,M-217B,M-217C,M-170,M-230
MV小型微動開光:MV-001,MV-3002,MV-3003,MV3000,MV-3000-NC,MV-3004S,MV-3004-P,MV-3004,MV-3003L,MV-3005-P,MV-3005,MV-3000-NO,MV-3001
MN小型橫式限制開關:
MN-5100-P,MN-5140,MN-5100,MN-5110L,MN-5110XL,MN-5110-P,MN-5121,MN-5120,MN-5110,MN-5124,MN-5311-P,MN-5312-P,MN-5311,MN-5144,MN-5310-P,MN-5141,MN-5161,MN-5169,MN-5166,MN-5312,MN5310
MJ防油限制開關:
MJ-7204 O,MJ-7000,MJ7104,JM7204,MJ-7102,MJ-7102R,MJ-7103,MJ-7104-P,MJ-7204-P,MJ-3243,MJ-3241,MJ-7101,MJ-7104-26,MJ-7204-26,MJ-7108-26,MJ7208-26,MJ7106,MJ-3242-M,MJ-3242,MJ-3244,MJ-7108,MJ7208,MJ-7108P,MJ7208P,MJ-7107L,MJ7207L,MJ-7107,MJ-7207
MEA輕小型限制開關:
MEA-9111,MEA-9111-P,MEA-9104,MEA-9104G,MEA-9122,MEA-9122-Z,MEA-9112-Z,MEA-9112-P,MEA-9122-P,MEA-9104G,MEA-9104-?,MEA-9108,MEA-9104-L,MEA-9169,MEA-9161,MEA-9107,MEA-9166
M4密封式限制開關:
M4-4101,ME-4311,ME-4102R,ME-4104,M4-4114,M4-4104S,M4-4102,M4-4310,M4-4312,M4-4106,M4-4102Q,ME-4112R,M4-4111,M4-4112,M4-4103,M4-4102S
MJ2 Z型微動開關:
MJ2-1308,MJ2-1300,MJ21306,MJ2-1543,MJ2-1701,MJ2-1711,MJ2-1712,MJ2-1317,MJ2-1513,MJ2-1306-P
MJ1防油橫式限制開關:
MJ1-6102,MJ1-6102R,MJ1-6101,MJ1-6114
MTB端子臺:
MTB-010,MTB-020,MTB-212,MTB-213,MTB-060,MTB-211,MTB-030
